Product description:
High Efficiency Coalescing turbine oil purification system Remove Water, it is widely used for online procession of the steam turbines, the gas turbines, the hydraulic turbine's oil in electric power, chemical industry, papermaking, metallurgy and so on, to guarantee the unit adjusting and the normal work of the lubrication system.
Product Feature
High Efficiency Coalescing turbine oil purification system Remove Water
1. A wide range of vacuum dehydration. It can be used for deep oil dehydration, with the treated oil containing less than 50ppm of water.
2. DCS remote control interface available. Either automatic or manual control mode can be designed according to the requirements of customers.
3. Special pipeline design, which can realize mutual transformation of various kinds of functions.
4. All the features of ZJC Turbine Oil filtration and Coalescing Dehydration Oil Purifiers are available in the product.
The special design and mature technology can promise its after-treatment oil index:
Water content: Less than or equal to 50ppm
Filtration accuracy: 3 micron
Particles: no (by visual test)
Specifications:
Parameter:Item | Unit | ZJC-10 | ZJC-20 | ZJC-30 | ZJC-50 | ZJC-75 | ZJC-100 | ZJC-150 | ZJC-200 |
Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 4500 | 6000 | 9000 | 12000 |
Vacuum degree | Mpa | -0.06 - -0.096 | |||||||
Working pressure | Mpa | Less than or equal to 0.3 | |||||||
Fault free | H | Greater than or equal to 4000 | |||||||
Continuous working time | H | Greater than or equal to 150 | |||||||
Working temperature | degree | 40 - 70 | |||||||
Heating power | kW | 15 | 18 | 30 | 45 | 60 | 72 | 72 | 84 |
Total Power | kW | 17 | 20 | 33 | 49 | 66 | 79 | 81 | 97 |
Diameter of inlet outlet | DN | 25 | 25 | 25 | 32 | 42 | 42 | 50 | 50 |
weight | Kg | 500 | 530 | 570 | 780 | 800 | 960 | 1050 | 1550 |
Dimension (mm) | L | 1300 | 1350 | 1450 | 1500 | 1500 | 1800 | 1800 | 1800 |
W | 1000 | 1000 | 1100 | 1150 | 1000 | 1500 | 1650 | 1500 | |
H | 1450 | 1450 | 1500 | 1650 | 1750 | 1800 | 1900 | 2000 | |
Oil index after treatment | |||||||||
Water content | 80ppm | ||||||||
Gas content | Less than or equal to 0.1 percent | ||||||||
cleanness | Less than or equal to 5µm（or as per requirement） | ||||||||
Demulsification Value | Less than or equal to 10 min | ||||||||

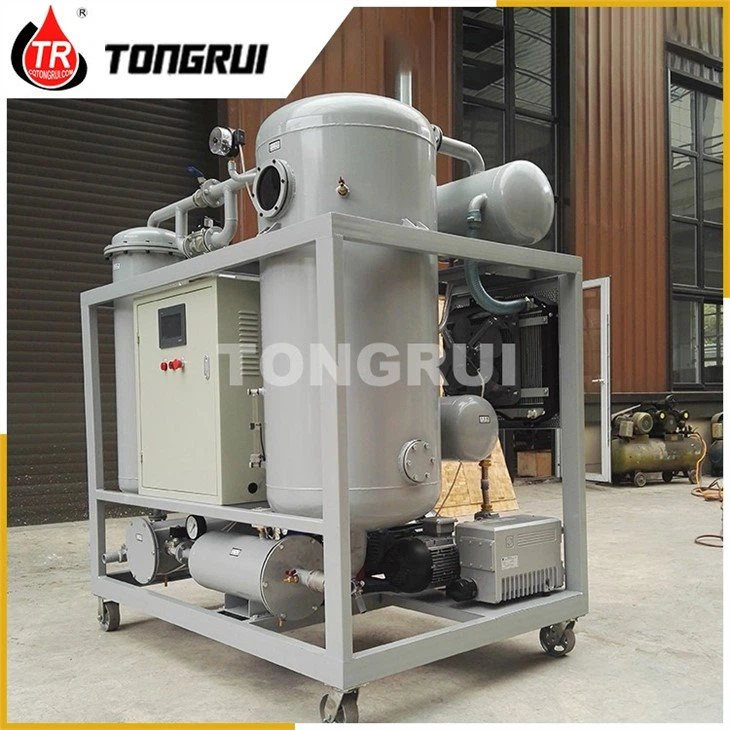

Turbine oil purification system pictures:
